GUIDING ELEMENTS

Lathe machining offers flexibility and versatility, featuring various processing modes such as Swiss-type, turret-type, and turn-mill compound machining. We provide a wide range of manufacturing processes, including cutting, drilling, tapping, reaming, and milling, suitable for producing precision components from diverse materials such as metals, plastics, and wood. Customized solutions are available, with the option to choose between cam-type lathes or high-precision CNC lathes according to specific requirements.

Our guide bushes and guide pins are available in a wide variety of types to meet diverse engineering and precision alignment requirements. They are classified according to structural design, material, mounting method, and functional application.

• Straight Guide Post: Basic type, used in conjunction with plain guide bushings.

• Shoulder Guide Post: Features a locating shoulder for more secure installation, commonly used in molds.

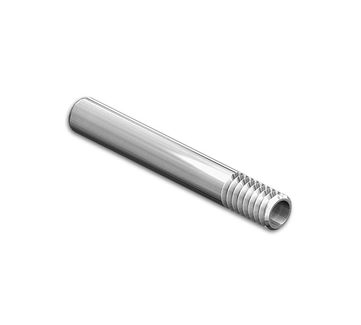

• Hollow Guide Post: Lightweight design, can also serve as pneumatic or hydraulic channels.

• Hard Chrome Plated Guide Post: Chrome-plated surface enhances wear resistance and corrosion protection.

• Plain Guide Bushing: Basic type with a straight bore, pairs with guide posts to provide precise guidance.

• Press-fit Guide Bushing / Insert Bushing: Can be inserted into mold or mounting bases for easy replacement and maintenance.

• Flange Guide Bushing: Features an external flange for easy positioning and secure fixation.

• Grooved / Lubricated Bushing: Bore or outer surface includes lubrication grooves to facilitate oiling and extend service life.
